Outdoor high-speed networking industrial wireless router ZXF0251 Specification (PDF)
WLAN/LAN, wired /4G intelligent switching, 4G networking

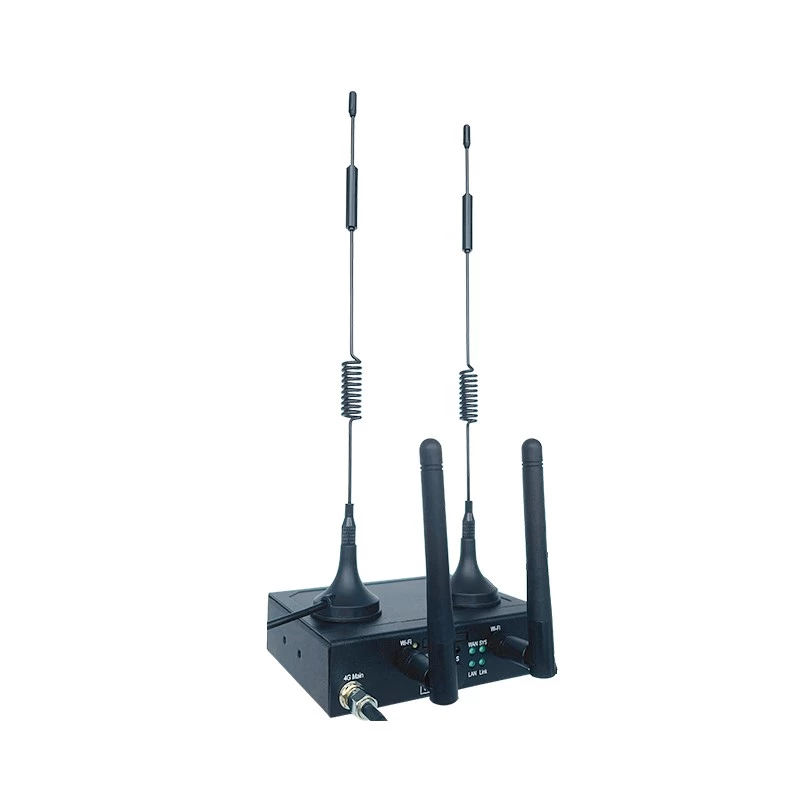

ZXF025 is a high-standard professional industrial wireless router. The RS232 local serial port is cloud-based, enabling remote serial port management and unified management in the cloud. The device status is clear at a glance. Supports 4G full network communication, supports Wi-Fi AP function, provides 10M/100M adaptive Ethernet interface, and the 4G function is plug-and-play. Industrial-grade high-standard design; with anti-interference and anti-surge capabilities, it is widely used in industrial control, data communication systems and industrial automation fields.
Product introduction
ZXF025 is a high standard professional industrial wireless router, RS232 local serial port cloud, realize remote serial port management, unified management of the cloud,The status of the equipment is clear at a glance. Support 4G all network communication, support Wi Fi AP function, provide 10m / 100M adaptive Ethernet interface, 4G function plug and play. Work Industry grade high standard design, with anti-interference and anti surge ability, widely used in industrial control, data communication system and industrial automation field.
Performance
8 core functions
Powerful, quality assurance Remote management watchdog design Simple high and low temperature resistance APN+VPN metal housing RS232/RS485 stable operation
Industrial design
widely used in mines, factories, unattended and other environments to meet the harsh needs of harsh industrial environments high temperature and low temperature resistance 85° C -20° C
Metal shell lightning protection
interface W-Fi W-Fi anti-static
Anti-surge DRTG XXD
power supply anti-reverse connection
IP30 protection grade
5-36V wide voltage input
GPS Location function
APN /VPN Enterprise Network Customization APN+VPN Enterprise Access
gps Location functionAPN Enterprise Network VPN Virtual Private network (PPTP/L2TP/OPENVPN/IPSEC)
4G Main GPS WAN SYS LAN Link 4G
Serial port communication server The serial port client or server supports RS232 or RS485
Optional: Rapid deployment Centralized management Cloud platform unified management, device monitoring, remote upgrade remote configuration, remote restart, remote P2P login
Product features
█ R232 cloud serial port
Cloud based local serial port, remote remote local serial port management, support cross platform
█ hardware GPS
Hardware GPS positioning is accurate and timely.
█ VPN encrypted tunnel
Support multi-mode VPN tunnel encryption, safe and reliable transmission, eliminate network risks.
█ SMS
Real time monitoring, SMS message, quick notification.
█ 4G and wired redundant backup
WAN port and 4G backup each other, embedded watchdog: equipment operation self-test technology, network fault self repair
█ cloud unified monitoring
Cloud unified monitoring and management, equipment upgrade and maintenance, physical location fast positioning, early warning analysis, operation and maintenance report analysis.
- Hardware specifications
| cpu | high performance network CPU |
| DDR2 | 128M |
| Flash | 16M |
| Network system | |
| Mobile system | 2G / 3G / 4G |

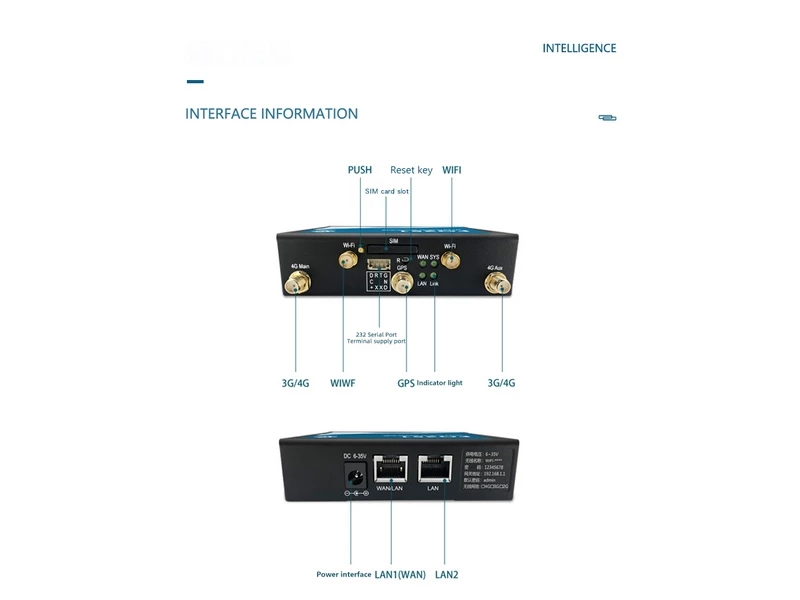

| Cellular interface | |
| 4G antenna interface | Quantity 2 |
| Interface type | SMA female |
| Sim | 1 (3.0 V / 1.8 V) |
| standard | GSM/GPRS/EDGE/UMTS/WCDMA/HSDPA/ HSUPA/HSPA+/FDD LTE/TDD LTE/Cat.M1/ Cat.NB1 |
| Serial port | |
| Number of ports | 1 x RS-232 + 1 x RS-485 |
| port type | 10 position 3.5 mm reverse pole female socket with lock |
| port type | 10 position 3.5 mm reverse pole female socket with lock |
| Baud rate | 110 bps~230400 bps |
| RS-232 | TxD，RxD，GND |
| Wireless rate | |
| 2.4G | 300m IEEE 802.11b/g/n |
| antenna | Sam female head |
| Power supply and power consumption | |
| Power interface | 3-position 3.5 mm reverse pole female socket with lock |
| physical property | |
| Protection level | IP30 |
| texture of material | Metal appearance |
| Net weight | 0.7Kg |
| Dimensions | 100*82*27mm |
| Installation method | Horizontal desktop, wall mounted or rail mounted (additional installation accessories are required for wall mounted and rail mounted) |
| working temperature | |
| Standard model | -10 ~ 60°C（14 ~ 140°F） |
| Wide temperature model |
-40 ~ 75°C（-40 ~ 167°F） |
| Storage temperature | -40 ~ 85°C（-40 ~ 185°F） |
| relative humidity | 5 ~ 95% (no condensation) |
| protect | |
| Hardware protection | Electrostatic protection, port hardware isolation, power supply isolation, hardware lightning protection design, power anti plug |
|
EMS |
IEC 61000-4-2 ESD: Contact: 6 kV; air: 8 kV
IEC 61000-4-3 RS：80 MHz ~ 1 GHz：20 V/m IEC 61000-4-4 EFT: power supply: 2 kV; signal: 2 kV IEC 61000-4-5 surge: power supply: 2 kV; signal: 2 kV IEC 61000-4-6 CS: signal: 10 V IEC 61000-4-8 PFMF：300A/m，60 s |
- software function
| Router function | |
| WAN | Automatic switch of wired 4G |
| LAN | DHCP server |
| Wifi | 2.4G 5.8G access |
| firewall | IP / port MAC URL VPN transparent bio white list |
| route | Static routing dynamic routing port mapping DMZ |
| VPN | |
| L2TP | L2TP client dialing |
| PPTP | PPTP client dialing |
| OpenVPN | OpenVPN server mode client mode |
| Ipsec | IPSec network to Network Dialing |
| VPN assistance | VPN watchdog Ping detection of Wan in VPN penetration |
| Short message service | |
| SMS notification | SMS online and offline automatically send SMS |
| SMS control | SMS control system restart |
| SMS support | Support up to 6 mobile phone number management |
| system function | |
| System basic | System upgrade, system configuration, system log |
| system function | Timing restart time setting password management |
| Cloud serial port | |
| Serial port instruction mode |
Direct control through the command, connect the device |
| RS232 serial port | Baud rate setting of transparent client server mode |
| RS485 serial port | Baud rate setting of transparent client server mode |
| Cloud management | |
| Portal | Cloud authentication advertising authentication |
| Cloud AC | Unified management of cloud computing |
| Cloud management platform | |
| Mocha ITOM | Device monitoring, remote upgrade, remote configuration, remote restart, remote P2P login |
| Report function | Operation and maintenance comprehensive report operation and maintenance early warning analysis operation and maintenance alarm analysis operation and maintenance geographical location analysis (Baidu Google map hot maintenance map) |
Application scenarios
This product has been widely used in the Internet of Things
Smart parking lot
Remote video transmission, real-time monitoring, data access
Smart terminal solutions
Terminal equipment data collection, remote management, saving maintenance costs
More scene applications
smart transportation
Smart containerTelemedicine
